Which MV switchgears are suitable for medium-voltage power distribution projects?

Core Role of MV Switchgear in System Protection and Operational Continuity

Medium voltage switchgear forms the backbone of power distribution systems at medium voltages, handling tasks like electrical isolation, interrupting faults, and managing loads. These devices protect critical infrastructure against dangerous short circuits and overloaded circuits, keeping operations running smoothly even in places where downtime just won't do, like hospitals, data centers, and those high-tech semiconductor factories. Modern equipment comes packed with sophisticated circuit breakers and protective relays that spot problems almost instantly and cut them off before they spread through the system. Power companies that upgraded to digital versions of MV switchgear saw their outage times drop by about 30% when compared to older models according to Plant Engineering magazine from last year. This kind of improvement really makes a difference for maintaining reliable electricity supply across the grid.

Integration in Urban and Industrial Grids: Case of Tokyo Electric Power

Cities packed with people need switchgear that saves space, so substations can fit into tight spots where they support tall buildings, run public transport systems, and help build out smart city tech. Take Tokyo Electric Power for instance, which swapped out old gear for gas insulated switchgear (GIS) last year. The change cut down on how much floor space each substation takes up by around 60%, all while handling those 22 kilovolt loads just fine. Across industrial areas too, companies are going modular with their switchgear setups because they need to power big machines such as arc furnaces and whole factories making electric vehicle batteries. What makes these adaptable systems really useful is how well they work alongside Japan's growing renewable energy grid without messing up the stability of the whole electrical network.

Digitalization Trends: Smart Monitoring and Grid Reliability Alignment

Modern medium voltage switchgear now comes equipped with internet-connected sensors and cloud platforms that keep an eye on things like insulation breakdown, contact wear, and heat buildup as they happen. These predictive maintenance systems crunch all the operational numbers and can cut unexpected shutdowns by around 45%, according to recent industry reports from 2024. As concerns about network security grow alongside the push for remote monitoring capabilities, power companies are increasingly going for equipment that meets smart grid requirements. Take one European utility company for instance they hit nearly 99.98% system reliability once they installed gear with live load balancing features. This shows just how much better performance gets when operators embrace these digital upgrades, plus it helps make operations greener over time too.

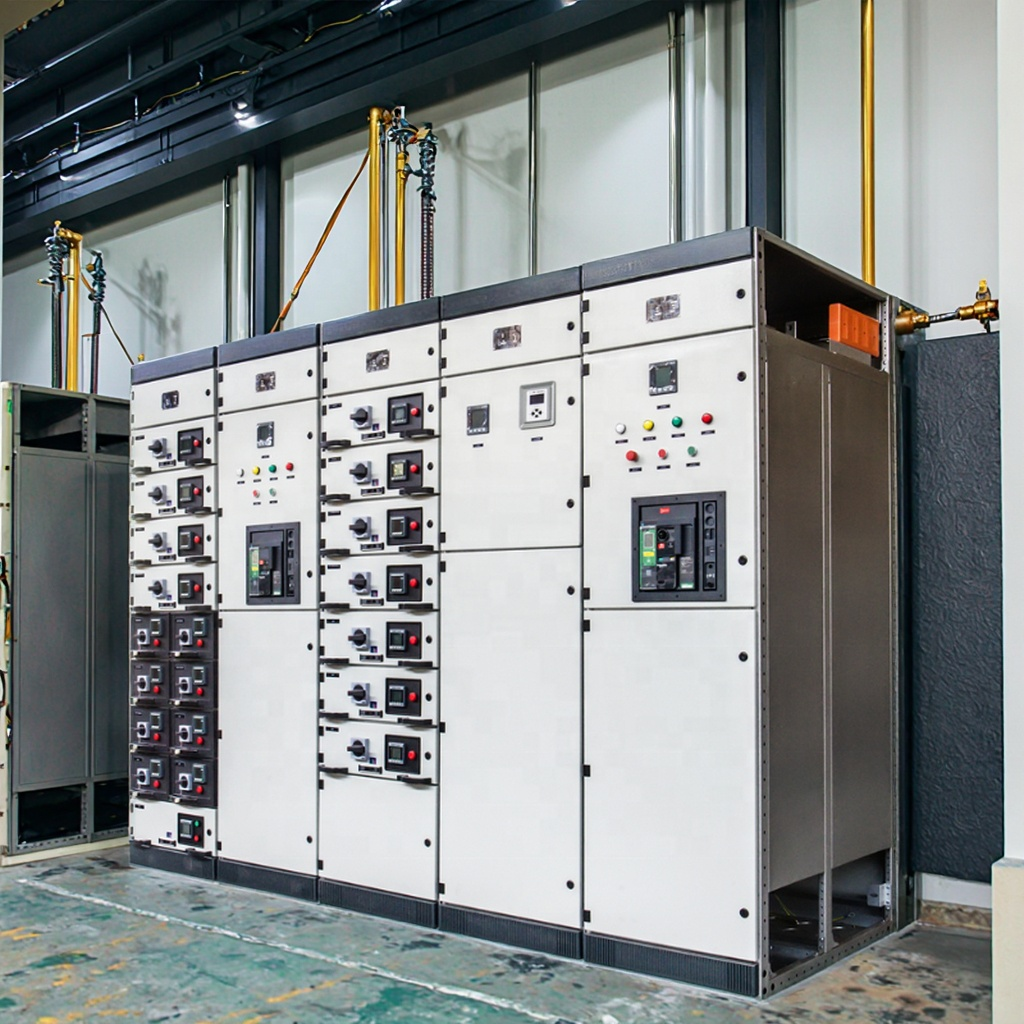

Key Types of MV Switchgear for Primary and Secondary Distribution Networks

Metal-Clad vs. Metal-Enclosed (ATR) Switchgear: Functional Differences and Applications

Metal clad medium voltage switchgear comes with separate compartments and parts that can be removed easily, which makes maintenance quicker and safer overall. This kind of setup works really well at industrial facilities where equipment cycles heavily throughout the day. On the other hand, metal enclosed ATR switchgear keeps everything inside a single grounded box with no moving parts, making it take up less space than alternatives. That's why many city substation projects prefer this option despite some limitations. When a chemical processing facility in Texas upgraded to metal clad units last year, they saw their yearly downtime drop around 15 percent according to Industrial Energy Journal from 2023. The modular nature of these systems clearly pays off when dealing with tough operating conditions across different industries.

Modular Designs for Flexible Secondary Distribution: Emerging Trends

Modular MV switchgear with pre-fabricated bus sections and plug-in connections allows scalable expansion in commercial developments and renewable energy parks. This approach supports incremental capacity upgrades without full system replacements. Increasingly, these units support bidirectional power flow, making them well-suited for decentralized grids powered by distributed generation and storage.

Case Study: Retrofitting Industrial Substations with Metal-Clad MV Switchgear (Texas, USA)

A refinery in Texas replaced aging 1980s switchgear with modern metal-clad systems rated for 25 kA fault current, resolving persistent coordination issues during peak operations. The upgrade included arc-resistant enclosures and integrated IoT sensors, resulting in a 40% reduction in corrective maintenance hours over an 18-month period.

Selection Strategy: Matching Switchgear Type to Load Profile and Fault Current

Choosing the right MV switchgear requires evaluating four key factors:

1. Load dynamics: Facilities with frequent switching need switchgear rated for 100+ daily operations
2. Fault current: Proximity to generation sources demands ≥25 kA interrupting capacity
3. Environment: Coastal installations require IP54-rated enclosures to resist salt mist
4. Expansion plans: Modular systems offer up to 30% lower lifecycle costs than traditional replacements (Grid Infrastructure Report, 2023)

Air-Insulated vs. Gas-Insulated MV Switchgear: Performance and Environmental Trade-offs

Comparing AIS and GIS: Footprint, Maintenance, and Lifecycle Costs

Air insulated switchgear, or AIS as it's commonly called, works by using regular air for insulation purposes. This means it takes up about three to five times more room compared to gas insulated switchgear (GIS). For places where space isn't an issue like rural areas, AIS makes financial sense. But when we're talking about cities where every square meter counts, AIS just doesn't fit the bill anymore. Gas insulated systems use something called sulfur hexafluoride (SF6) instead. These systems take up roughly 90% less space but come at a price tag that's 40 to 60% higher according to IEC reports from 2023. When it comes down to day to day operations, maintenance requirements differ quite a bit too. The AIS equipment needs checking for dirt and debris every three months or so. Meanwhile, GIS installations require special monitoring of their gas levels only once every couple of years, maybe even three depending on conditions.

Environmental Constraints and SF6 Regulatory Pressure

SF6 gas is present in around 85 percent of all GIS systems worldwide, but here's the catch it packs a climate punch that's roughly 23,500 times worse than regular carbon dioxide according to EPA figures from 2022. The European Union isn't sitting idle on this either their F-Gas regulations are pushing for cutting SF6 usage down by two thirds before 2030 hits. And let's not forget about those hefty fines waiting for anyone who lets this stuff leak out into the atmosphere penalties can reach as high as half a million dollars. Because of these risks, many companies are switching over to safer alternatives for insulation purposes, often opting for combinations of dry air or nitrogen instead.

Case Study: GIS Deployment in High-Density Areas

A major metropolitan rail system achieved 99.98% reliability by replacing AIS with GIS across 42 substations. The compact design reduced station size by 75%, crucial for tunnel projects with less than 5 meters of vertical clearance. However, annual maintenance costs rose 18% due to stringent SF6 handling requirements.

Future of Insulation: Solid Dielectrics and Vacuum Switching Technologies

The move toward solid insulated switchgear (SIS) and vacuum interrupters is cutting down on sulfur hexafluoride usage dramatically in medium voltage systems these days. We're talking about roughly 92% reduction compared to traditional methods. For those working at 24 kV levels specifically, SIS equipment actually comes out around 22 percent cheaper over its lifetime when compared against gas insulated switchgear. Plus there's almost nothing coming out of them environmentally speaking under half a part per billion emissions. Looking ahead, many experts believe hybrid solutions that mix vacuum switching technology with carbon dioxide based insulation could grab nearly half of all medium voltage installations by the end of this decade. This trend makes sense for utilities aiming to meet their climate targets while still maintaining reliable power distribution networks across growing infrastructure demands.

Eco-Efficient Gases (g3, Clean Air): Technical Performance and Compliance

Modern MV switchgear that doesn't use SF6 is increasingly relying on environmentally friendly gases like g3, which are fluoronitrile based mixtures, along with Clean Air that combines dry air and nitrogen. These newer options perform just as well as traditional SF6 when it comes to electrical insulation properties, but they dramatically reduce their impact on climate change by more than 99%. Testing in actual field conditions shows that systems using g3 insulation keep leakage rates under control at around 0.5% even when operating at pressures 30% higher than standard requirements, which satisfies the IEC 62271-203 specifications for performance. With the G7 countries pushing for an end to SF6 usage in all newly manufactured equipment by 2024, most European utility companies have already started requiring SF6-free equipment in their purchasing contracts, with about eight out of ten specifying these greener alternatives in tender documents.

Global Phase-Down of SF6: Impact of F-Gas Regulation and Kyoto Protocol

More than forty nations around the world have put limits on SF6 usage through various updates to F-Gas rules and their commitments under the Kyoto Protocol, aiming to cut emissions down by roughly seventy percent before 2030 rolls around. In Europe, new amendments from 2024 ban SF6 from main medium voltage switchgear systems rated at fifty two kilovolts or higher. Meanwhile across in China, their latest national standard GB/T 11022-2023 requires alternative materials when expanding city power grids. These changing regulations have really pushed manufacturers forward, leading to something like tripled growth in shipments of SF6 free medium voltage equipment compared to just one year ago. Hybrid technology options are becoming increasingly common now, working well within voltage ranges from twelve up to forty point five kilovolts.

Case Study: National Grid UK's Transition to SF6-Free GIS

National Grid UK replaced 145 SF6 GIS units with Clean Air-insulated systems across 12 substations, achieving:

• An annual reduction of 18 tons of SF6 emissions
• 30% lower maintenance costs due to simplified gas handling
• 25% faster deployment via modular construction
  Post-installation monitoring confirmed 99.98% availability during peak demand, validating the reliability of SF6-free technology in critical transmission networks.

Roadmap for Utilities: Strategies to Adopt Sustainable MV Switchgear

To transition effectively, utilities should focus on:

1. Lifecycle cost analysis incorporating carbon pricing and long-term regulatory compliance
2. Retrofit programs integrating vacuum circuit breakers into existing SF6 bays
3. Staff training on safe handling and monitoring of alternative gases
4. Collaborative R&D with manufacturers to extend solid-insulated switchgear capabilities to 72.5 kV
   Early adopters report payback periods of 5–7 years through avoided environmental penalties and reduced maintenance.

Selection and Reliability Criteria for MV Switchgear in Real-World Projects

Critical Parameters: Voltage Rating, Short-Circuit Capacity, and IP Protection

Selecting MV switchgear begins with three essential criteria:

• Voltage rating must exceed operating voltage by 15–20% per IEC 62271-200
• Short-circuit capacity must match site-specific fault levels measured during system studies
• IP protection class (e.g., IP54) ensures durability against dust and moisture in harsh conditions

A 2023 study of offshore platforms found that 62% of switchgear failures resulted from inadequate short-circuit ratings, emphasizing the importance of precise engineering assessments.

Lifecycle Assessment (LCA) for Long-Term Equipment Planning

Progressive utilities evaluate total ownership cost over a 25-year horizon. Metal-clad switchgear typically offers 18–22% lower lifecycle expenses than compartmentalized alternatives, primarily due to easier component access and reduced downtime during maintenance.

Case Study: Offshore Wind Farm Substations and Site-Specific Selection

A North Sea wind farm improved uptime by 41% after installing salt-spray-resistant MV switchgear equipped with pressurization systems designed to withstand wave impacts up to 2.5 m. The robust design ensured reliable operation in one of the most corrosive marine environments.

Enhancing Reliability: Arc-Flash Resistance and Predictive Maintenance

Modern MV switchgear enhances safety and availability through dual reliability mechanisms:

1. Arc-flash containment tested to IEEE C37.20.7 (capable of withstanding 40 kA for 500 ms)
2. IoT-enabled condition monitoring, which reduces unplanned outages by 57% through predictive diagnostics

Field Performance: Mining Operations Using ATR Switchgear (Australia)

In Australia's Pilbara region, air-insulated ATR switchgear maintained 93.6% availability despite extreme conditions—temperatures exceeding 50°C and particulate concentrations above 15 mg/m³—proving its resilience in rugged industrial applications.

FAQ

What is MV Switchgear and why is it important?

Medium Voltage (MV) Switchgear is essential in power distribution systems, performing functions such as electrical isolation, interrupting faults, and managing loads. It ensures the protection and reliability of critical infrastructures like hospitals and data centers.

How does Digital MV Switchgear enhance reliability?

Digital MV Switchgear integrates smart monitoring capabilities, allowing predictive maintenance. This reduces unexpected shutdowns by up to 45%, as reported by industry reports.

What are the environmental concerns with SF6 gas used in GIS systems?

SF6 gas has a significant climate impact, being 23,500 times more potent than CO2. Regulations aim to reduce its use, pushing toward eco-friendly alternatives like dry air and nitrogen.

What are the differences between Air-Insulated Switchgear (AIS) and Gas-Insulated Switchgear (GIS)?

AIS uses regular air for insulation, requiring more space, while GIS uses SF6 gas and is more compact but costlier. GIS is preferred in space-constrained areas, while AIS is suitable for rural settings.
