What Is a Capacitor Bank and How Does It Support Power Factor Correction?

Capacitor banks are basically groups of capacitors wired together either in parallel or series configuration. Their main job is to put reactive power back into electrical systems where it's needed most. This helps fight against the lagging current that comes from things like motors and transformers which naturally draw more current than they actually need. When these capacitor banks supply what's called leading reactive current, they effectively shrink the gap between when voltage peaks and when current peaks happen. This brings the power factor closer to that ideal 1.0 mark everyone talks about. What does this mean practically? Less wasted energy overall because we're not dealing with all that extra apparent power anymore. Plus, there's less stress on the whole distribution network throughout the system, which makes everything run smoother in the long run.

The Role of Reactive Power in Electrical Distribution Panels

Equipment that works on induction needs reactive power to create those magnetic fields we all know about, which causes what's called a lagging power factor. This means more current flows through the distribution panels than necessary. If nothing gets done about it, the utility companies have to send out extra reactive power just to keep things running. That leads to wasted energy during transmission and sometimes even gets factories hit with extra charges for their electricity usage. Capacitor banks help fix this problem by supplying the needed reactive power right where it's required. Most industrial facilities see around half their reliance on the main grid drop after installing these systems. The benefits go beyond saving money too. Voltage stays more stable across the facility, and machines tend to last longer since they're not working as hard against inefficient power conditions.

Key Benefits of Integrating Capacitor Banks with Distribution Systems

• Energy Cost Reduction: Facilities avoid reactive power charges and cut I²R losses by up to 25%, directly lowering utility bills
• System Capacity Optimization: Freed-up capacity enables existing infrastructure to handle 15–30% more active load without upgrades
• Voltage Stability: Reactive compensation minimizes voltage sags, protecting sensitive electronics and ensuring consistent performance
• Regulatory Compliance: Maintaining power factors above 0.95 helps meet IEEE 519-2022 requirements and avoids financial penalties

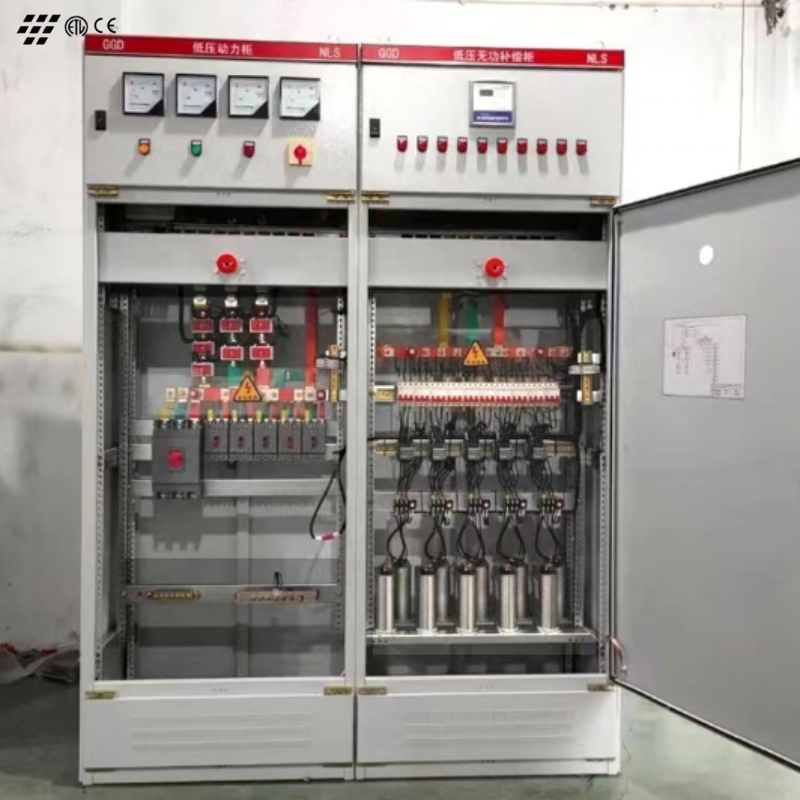

Types of Capacitor Banks for Compatibility with Distribution Panels

Fixed vs. Automatic Capacitor Banks: Performance in Dynamic Loads

Fixed capacitor banks provide consistent kVAr output which makes them cost effective when dealing with loads that don't change much. But what about those places where the electrical demand keeps fluctuating? Manufacturing facilities come to mind here. For these situations, automatic capacitor banks with microprocessor controllers work better. The smart systems can tweak the capacitance on the fly, leading to around 30 to 35 percent improvement in power factor accuracy over traditional fixed setups. Another big plus is that automatic controls stop the system from overcorrecting itself, something that often causes instability problems. And let's not forget about sizing issues either. According to research from IEEE in 2023, way too many capacitors fail simply because they were installed in sizes that were just too large for the job.

Tuned and Detuned Capacitor Banks for Harmonic-Rich Environments

When dealing with systems that produce lots of harmonic distortion, such as setups involving variable speed drives or arc furnaces, engineers often turn to tuned capacitor banks. These systems incorporate special reactors that target particular harmonics, like the 5th or 7th order ones, which helps avoid dangerous resonance problems. For detuned configurations, there's usually a set ratio between reactors and capacitance, typically around 7% or 14%, that pushes resonant frequencies down below where the main harmonics occur, giving better overall protection against disturbances. Looking at actual field results from steel mills in 2023, facilities that installed these tuned banks saw about a 42% drop in harmonic distortion levels when compared to regular equipment. This kind of improvement makes a real difference in industrial settings where electrical stability is critical for operations.

Hybrid Capacitor Banks: Combining Speed and Efficiency

Hybrid systems mix fixed base stages with modules that switch automatically, giving response times below 100 milliseconds while keeping around 94% efficiency levels. These setups work great for places that have consistent baseline demand but occasional spikes too, think hospitals or data centers where power needs can jump suddenly. The balance between upfront costs, quick responses, and reliable operation makes them attractive options. Testing in real world conditions shows these hybrid banks cut down on switching actions by about two thirds compared to completely automatic systems. That means components like contactors and capacitors last much longer before needing replacement, which saves money over time.

Case Study: Oil & Gas Facility Reduces Penalties Using Switched Banks

A drilling site in West Texas managed to cut around $178k worth of yearly utility fines simply by swapping out old fixed capacitors for newer automatic switching systems. The load sensing controllers worked pretty fast too, adjusting capacitance levels within about 2 seconds after compressors started running. This kept their power factor consistently near that sweet spot of 0.98 even when operations fluctuated throughout the day. After everything was installed, they ran some checks and found reactive power charges had dropped by roughly 12.7%. Pretty impressive considering most businesses take years to see such returns, but this company actually got all its money back within just 14 months flat.

Sizing and Placement Strategies for Optimal Capacitor Bank Performance

Effective deployment of capacitor banks demands precise sizing and strategic placement to maximize efficiency while avoiding instability risks.

Calculating kVAr Requirements Based on Load Profiles

Accurate kVAr estimation begins with detailed load profiling. Motor-heavy industrial systems typically require 1.2–1.5 kVAR per horsepower, whereas commercial buildings average 15–20 kVAR per 100 kW of demand. Modern approaches leverage advanced modeling techniques, including genetic algorithm optimization, to refine traditional 80/125% load factor calculations for dynamic environments.

Using Power Audits to Determine "Optimal Sizing of Capacitor Banks"

Comprehensive power audits—using three-phase logging over representative periods—uncover hidden reactive demands missed by basic metering. A 2024 industry study found such audits reduced capacitor over-sizing by 34% compared to single-point assessments, enhancing both performance and cost-effectiveness.

Avoiding Overcorrection: The Risks of Oversized Capacitor Banks

Exceeding actual reactive power needs by more than 15% can lead to leading power factors, causing overvoltage conditions and disrupting voltage regulation. Systems with excessive capacitance experience 12% higher failure rates due to resonance and transient instability.

Industry Paradox: When Larger Banks Lead to Lower System Stability

Counterintuitively, smaller, well-matched banks often outperform larger ones. Grid simulations show that 2 MVAR banks provided better stability than 5 MVAR equivalents in 68% of industrial cases. The optimal range aligns with 90–95% of peak reactive demand, ensuring effective correction without compromising system dynamics.

Centralized vs. Distributed Capacitor Bank Placement

Centralized installations offer lower initial costs—reducing capital expenditure by 18–22%—but sacrifice 9–14% in efficiency gains achievable through distributed placement. Locating banks near major inductive or harmonic sources reduces line losses by up to 27% (IEEE 2023) and improves local voltage support.

Impact of "Capacitor Bank Placement in Distribution Networks" on Voltage Regulation

Strategic node selection enhances voltage profiles by 0.8–1.2% per 100 kVAR installed. Emerging smart grid technologies use real-time impedance mapping to optimize the location and dispatch of capacitive resources dynamically.

Real-World Example: Municipal Grid Improves Efficiency by 18%

A Midwest utility upgraded its distribution network using phased capacitor deployment guided by machine learning-based load forecasting. The $2.7 million initiative improved system efficiency by 18.2% and eliminated $740,000 in annual penalty charges (DOE 2024), demonstrating the long-term value of data-driven planning.

Measuring Effectiveness: Key Metrics for Power Factor Correction Success

Measuring Power Factor Before and After Capacitor Integration

Establishing an accurate baseline is essential. Industrial sites typically deploy power quality analyzers for 7–14 days to capture full load cycles. According to a 2023 EPRI study, properly sized and integrated capacitor banks raise average power factor from 0.78 to 0.96 within 72 hours in motor-dominated systems.

Energy Loss Reduction and Utility Bill Analysis

Each 0.1 improvement in power factor reduces energy losses by approximately 1.2% (IEEE 1547-2022). One Midwest manufacturer corrected a 0.67 power factor using automatic capacitor banks, saving $18,500 monthly on demand charges and recouping investment in 11 months.

Monitoring Tools for Long-Term Capacitor Bank Effectiveness

Modern monitoring leverages IoT-enabled sensors to track critical health indicators in real time, including THD (Total Harmonic Distortion), capacitor temperature drift, and dielectric absorption ratios. As outlined in the 2024 Power Quality Monitoring Guide, integrating these metrics with SCADA systems allows predictive maintenance, identifying degradation trends 6–8 months before failure.

FAQ

What is the main purpose of a capacitor bank?

A capacitor bank is primarily used to provide reactive power to an electrical system, supporting power factor correction and reducing energy wastage due to reactive current.

How do capacitor banks help in reducing energy costs?

By supplying reactive power locally, capacitor banks eliminate the need for utilities to provide extra power, thus reducing the energy losses and charges associated with reactive power consumption.

What are the benefits of using automatic capacitor banks over fixed ones?

Automatic capacitor banks can adjust to changing loads, preventing overcorrection and improving power factor accuracy significantly compared to fixed systems.

Why is proper sizing and placement of capacitor banks important?

Correct sizing and strategic placement are crucial to maximizing efficiency and minimizing instability risks. Oversized banks can lead to overvoltage issues, while distributed placements can reduce line losses and improve voltage support.
