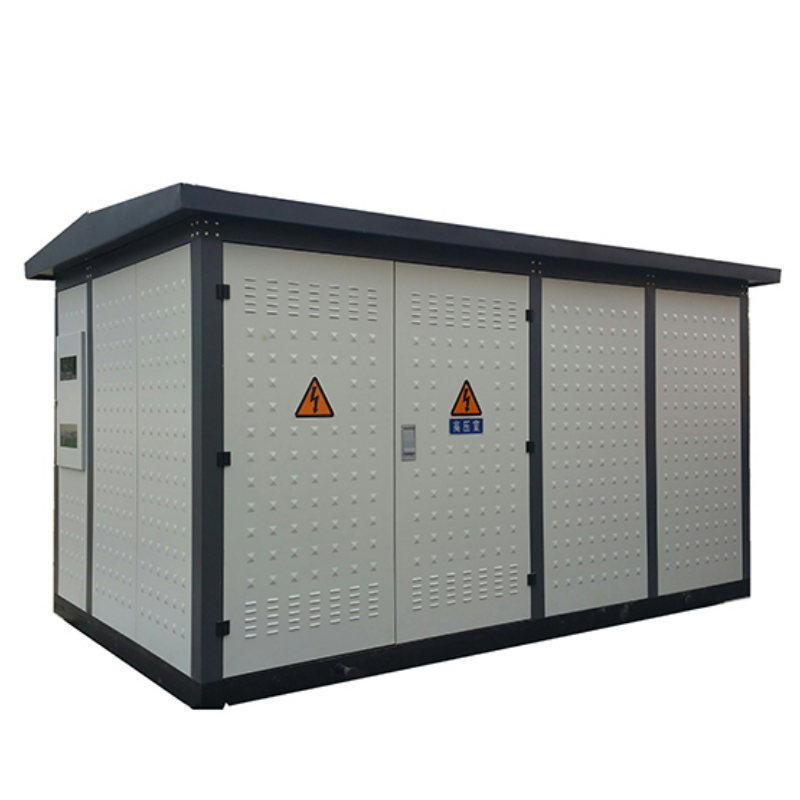

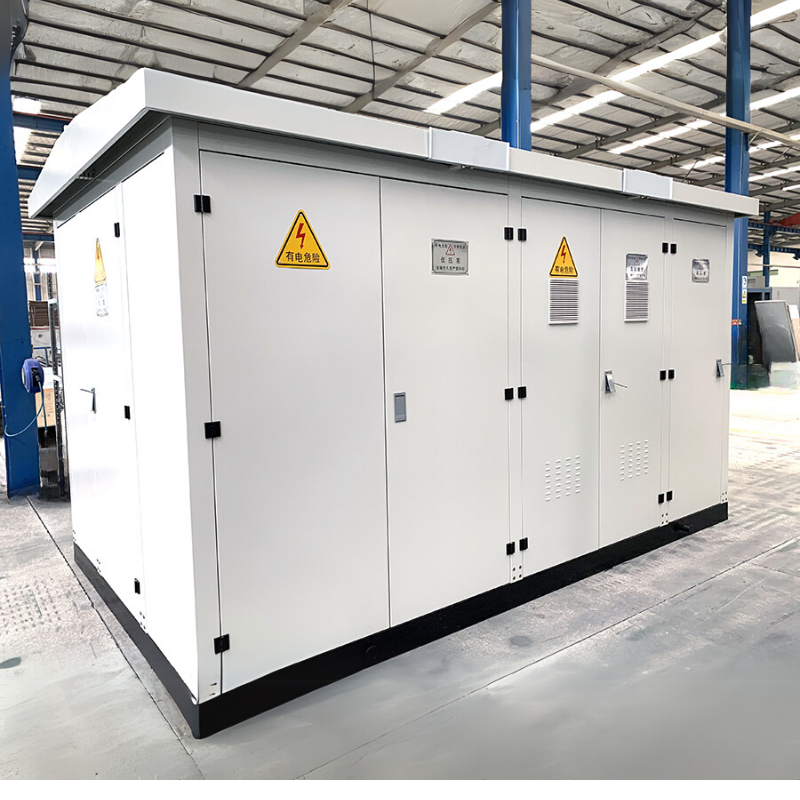

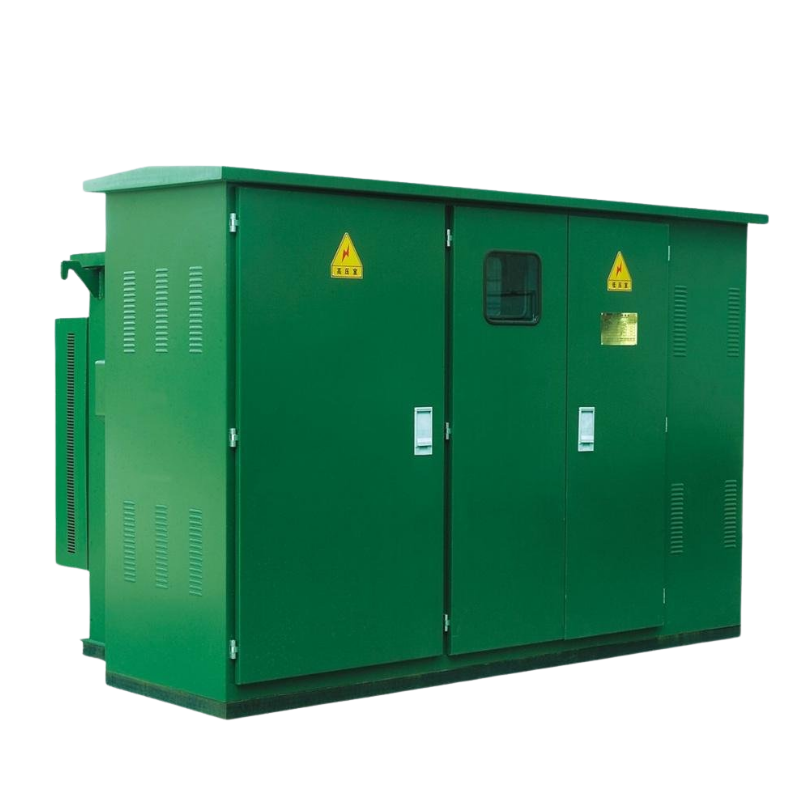

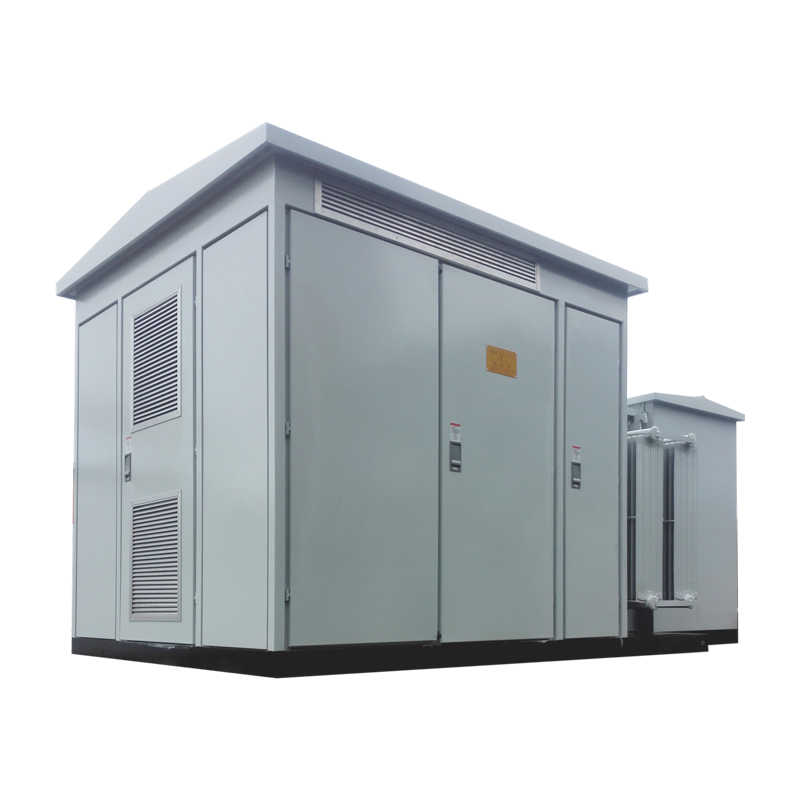

Box Type Substation
-Voltage Level: 11kV/0.4kV, 33kV/0.4kV
-Transformer Capacity: 100kVA to 2500kVA
-Protection Rating: IP54/IP55
-Enclosure Material: Corrosion-Resistant Steel
-Cooling Method: Natural/Oil-Immersed
- Overview
- Recommended Products
Product Brief Description:
The Box Type Substation integrates high-voltage switchgear, transformer, and low-voltage distribution systems in a compact, weatherproof enclosure. Designed for urban power distribution, it ensures efficient energy conversion and reliable operation in outdoor environments.
Parameter Specification:
Parameter |
Specification |
Voltage Level |
11kV/0.4kV, 33kV/0.4kV |
Transformer Capacity |
100kVA to 2500kVA |
Protection Rating |
IP54/IP55 |
Enclosure Material |
Corrosion-Resistant Steel |
Cooling Method |
Natural/Oil-Immersed |
Standards |
IEC 62271, GB/T 17467 |
Warranty |
1 year |
Key Features:
Compact Design: Saves space with integrated components and modular structure.
Durability: Anti-corrosion coating and sealed enclosure for harsh environments.
Easy Installation: Pre-assembled units reduce on-site construction time.
Energy Efficiency: Low-loss transformer design minimizes operational costs.
Applications:
Urban residential areas and industrial parks
Renewable energy integration (solar/wind farms)
Temporary power supply for construction sites
