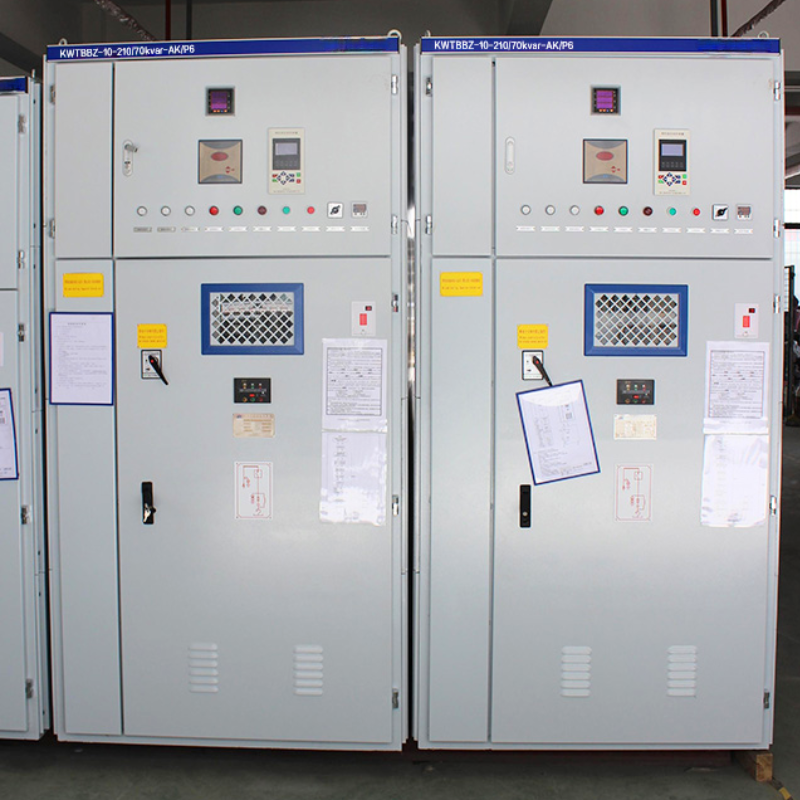

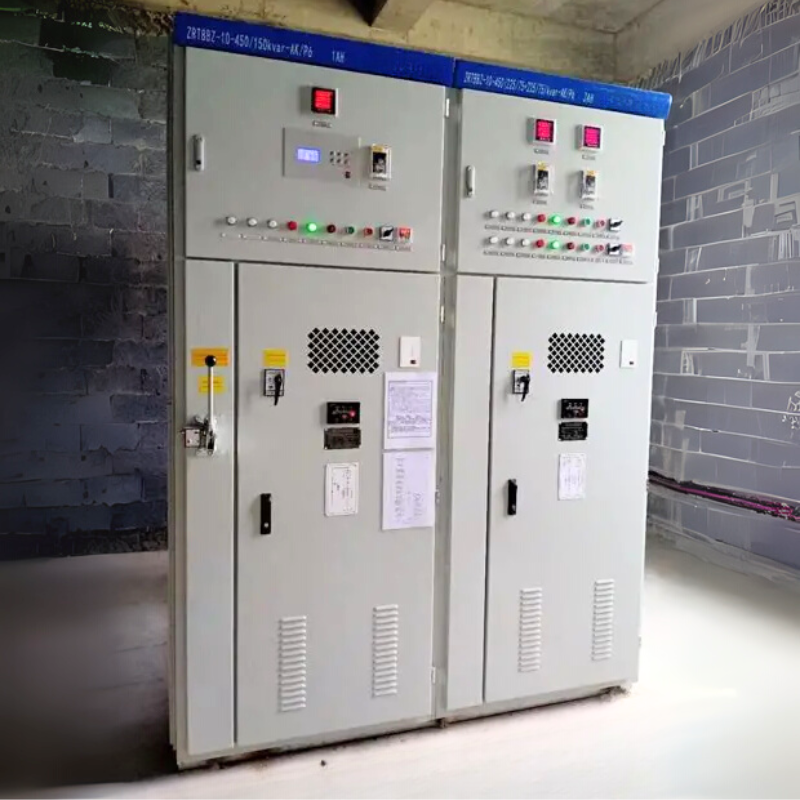

Medium and High Voltage Capacitor Compensation Cabinet
-Voltage Level: 6.6kV to 33kV
-Compensation Capacity: 500kvar to 10Mvar
-Response Time: ≤10ms
-Harmonic Filtering: Up to 25th Order
-Protection Features: Overvoltage, Overcurrent, Overheating
- Overview
- Recommended Products
Product Brief Description:
This cabinet provides reactive power compensation for medium and high-voltage grids, improving power factor and reducing energy losses. Equipped with intelligent controls, it ensures stable voltage regulation and harmonic suppression.
Parameter Specification:
Parameter |
Specification |
Voltage Level |
6.6kV to 33kV |
Compensation Capacity |
500kvar to 10Mvar |
Response Time |
≤10ms |
Harmonic Filtering |
Up to 25th Order |
Protection Features |
Overvoltage, Overcurrent, Overheating |
Warranty |
1 year |
Key Features:
Dynamic Compensation: Automatically adjusts reactive power based on load demand.
High Reliability: Self-healing capacitors and vacuum contactors for long-term stability.
Smart Monitoring: Remote access via SCADA for real-time data analysis.
Modular Design: Scalable configurations for large-scale power systems.
Applications:
Steel mills and chemical plants
High-voltage transmission substations
Railway electrification systems
