What should be checked when inspecting control panels before shipment for industrial use?

Purpose and Core Objectives of Pre-Shipment Inspection for Control Panels

The Role of Pre-Shipment Inspection in Ensuring Control Panel Reliability

The pre-shipment inspection is basically the last chance to catch quality issues before those industrial control panels hit the field in places where failure just isn't an option. During this check, technicians look for hidden problems that might not show up until later - things like wires that aren't properly secured, bolts tightened to wrong specs, or parts that simply don't work well together. The testing process goes beyond visual checks by putting panels through their paces with temperature changes and simulated vibrations similar to what they'll face on actual job sites. This helps ensure they'll hold up in tough spots such as busy factories or harsh conditions out at sea.

Key Goals of Final Quality Verification Before Industrial Deployment

Three core objectives guide pre-shipment inspections:

1. Specification Compliance: Confirming that delivered units match engineering schematics
2. Functional Readiness: Validating safety interlocks, overload responses, and emergency stop functions
3. Documentation Accuracy: Ensuring operation manuals reflect actual panel configurations

Panels undergoing rigorous pre-shipment checks experience 68% fewer service interruptions during their first year compared to uninspected units, according to a 2022 industrial safety study.

How Inspection Prevents Field Failures and Ensures Customer Compliance

Thorough inspections before shipping equipment can save companies around $180,000 that they'd otherwise spend fixing problems after installation. Field engineers check if systems meet local requirements like NEC Article 409 about circuit protection and NFPA 79 standards for factory equipment safety. Getting these details right from day one makes all the difference. Not only does this approach ensure things work properly when installed, but it also keeps everything in line with ISO 9001:2015 quality management standards. Manufacturers who skip these checks end up dealing with expensive recalls down the road, which nobody wants to handle during production deadlines.

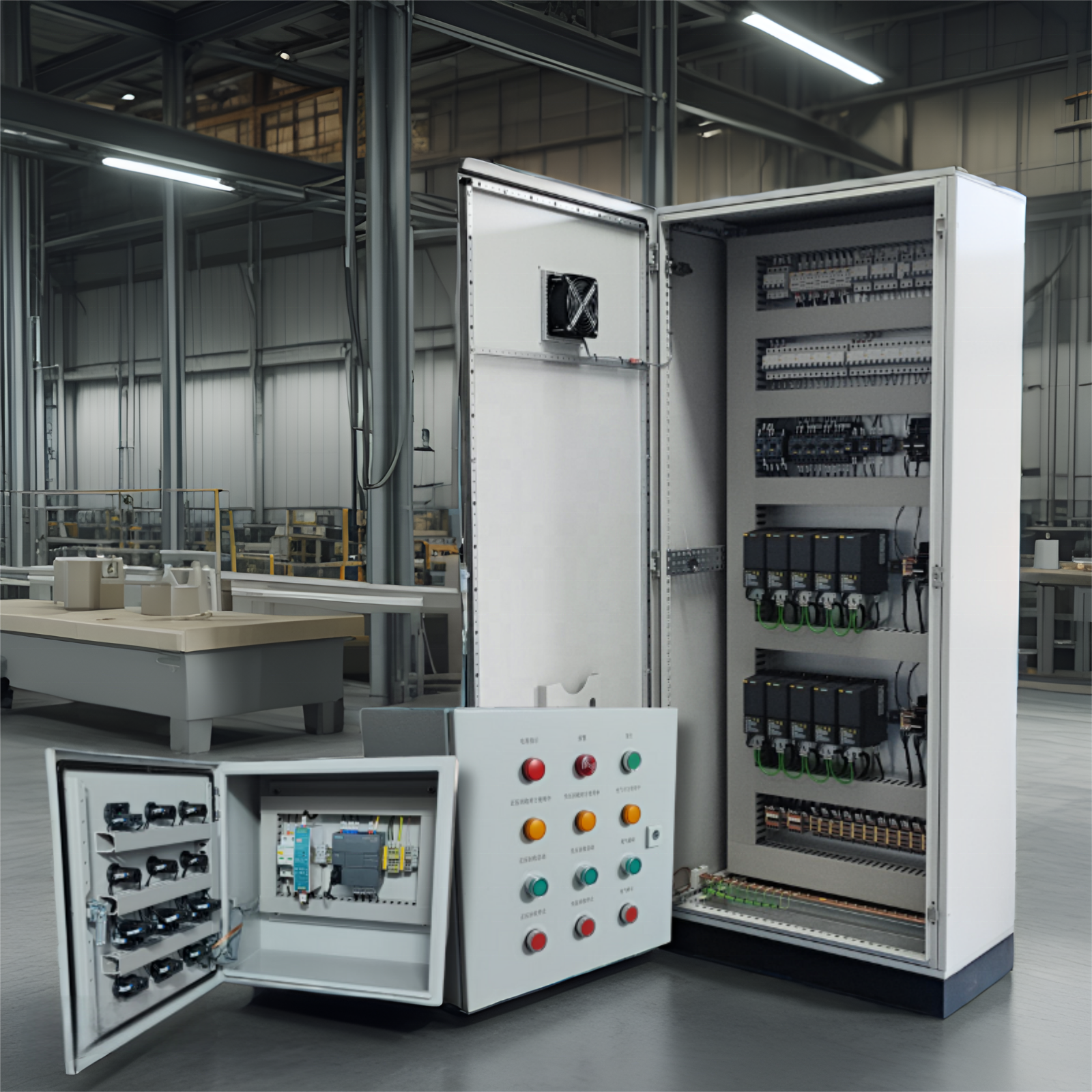

Visual and Mechanical Integrity Check of Control Panels

Inspecting Enclosure, Component Alignment, and Structural Integrity

Start by looking at the enclosure itself for any signs of warping, rust spots, or poor seals that might compromise its environmental protection rating (those IP numbers matter!). Check if all those terminal blocks, circuit breakers, and PLC components are properly fastened so they don't put strain on the wires running through them. When it comes to structural integrity, make sure welds hold up under inspection, brackets stay stable during operation, and grounding connections remain intact. Small problems here can really hurt seismic performance in factories and plants, sometimes cutting resistance down by nearly half according to field reports from maintenance teams across various industries.

Identifying Damage, Misassembly, or Substandard Materials

When checking equipment after delivery, look out for any signs of shipping damage, loose bolts, or scratches on surfaces that might cause dangerous arc faults down the line. Running thermal scans while the system is powered up can reveal problems we cant see with the naked eye, like wires that are too thin for the load they carry or circuits working beyond their capacity. Any panels made with materials that dont meet standards should be sent back immediately. Weve seen cases where manufacturers pass off aluminum busbars as copper clad ones, but these fake components actually have between 35 to 60 percent more electrical resistance compared to what theyre supposed to be. That kind of discrepancy creates serious safety risks over time.

Verifying Labeling, Wiring Diagrams, and Regulatory Markings

Cross-check wire markers and terminal IDs against updated schematics to prevent cross-connection errors. Regulatory labels (UL, CE, IECEx) must be legible, permanent, and consistent with the certified configuration. A 2023 audit found that 22% of safety incidents stemmed from incorrect labeling—a risk mitigated through thorough pre-shipment verification.

This layered approach ensures durability under mechanical stress while maintaining clarity for field technicians.

Functional Performance and Safety Testing of Industrial Control Panels

Conducting operational tests on relays, contactors, and HMI interfaces

When we power up equipment for testing, we check how all the parts work together – relays, contactors, those HMI screens everyone looks at. We actually run components through about 50 to 100 extra cycles beyond what they'd normally handle. This helps us spot problems that might show up early on. At the same time, we keep an eye on communication protocols such as Modbus TCP/IP to make sure signals stay clean and strong throughout the system. A recent report from NFPA back in 2023 found something pretty impressive too. They said when manufacturers do thorough testing like this, it cuts down on breakdowns in the field by around 72% for systems that get really busy with operations.

Validating system responsiveness under simulated load conditions

Performance is benchmarked at 115% of rated capacity using programmable load banks. Engineers assess response times for overload tripping, voltage stabilization during motor startups, and PLC logic execution under stress. Simulations replicate events such as simultaneous equipment activation and sudden power shifts to confirm reliable behavior.

Ensuring electrical and mechanical safety per OSHA and ISO standards

Safety validation includes:

1. Dielectric withstand test at 1,500V AC for 1 minute (UL 508A)
2. Insulation resistance >100 MΩ (IEC 60664-1)
3. Ground continuity <0.1Ω across conductive surfaces (OSHA 1910.303)
   Mechanical tests verify vibration resistance (IEC 60068-2-6) and IP54 ingress protection (IEC 60529).

Balancing comprehensive testing with time-to-market efficiency

While 98% of manufacturers prioritize full safety validation (Ponemon 2022), lean strategies like First-Time-Right testing eliminate redundancy without sacrificing quality. Non-destructive methods such as infrared thermal imaging detect 89% of hidden defects during final inspection, accelerating approval workflows.

Compliance Verification: Meeting International and Industry-Specific Standards

Confirming Adherence to IEC, UL, CE, and Other Global Certifications

Control panels need to meet several key standards these days. For structural integrity, they should follow IEC 61439-1:2020. Safety requirements come from UL 508A, while European markets demand CE marking for electromagnetic compatibility issues. Manufacturers working globally often have to deal with additional local regulations too. Take Japan for instance where METI sets its own rules, or Brazil which requires compliance with INMETRO standards before equipment can be deployed there. Getting panels certified under three or more of these standards actually cuts down on installation delays quite significantly. A recent 2023 study on interoperability found that installations with multiple certifications faced about 64% fewer delays compared to those without. Makes sense really since having all the paperwork sorted out ahead of time saves everyone headaches during actual deployment.

Meeting NEMA and NEC Requirements for North American Markets

In North America, panels must meet NEMA enclosure ratings (Type 1 to 4X) and NEC Article 409 standards. For instance, NEC requires overcurrent protection devices within 6 feet of power inputs—a rule not present in IEC frameworks. Third-party labs report that 22% of non-compliant panels fail NEMA 12 dust-tightness requirements during final checks.

Validating UL 508A Certification and Required Safety Accreditations

UL 508A certification addresses panel-specific hazards including arc flash containment and conductor spacing. Inspectors confirm:

• Minimum 0.75-inch clearance between uninsulated components
• Thermal rise limited to 30°C above ambient
• Short-circuit current ratings (SCCR) aligned with application needs
  Panels missing proper SCCR labels account for 38% of field failure reports (Electrical Safety Foundation International, 2024).

Documentation of Compliance for Audit and Traceability Purposes

Complete documentation includes material traceability records, signed test reports, and certification stamps. Leading manufacturers use blockchain-based systems to create immutable audit trails, cutting compliance verification time by 53% (Manufacturing Technology Insights, 2023). Digital manuals with QR-linked schematics now satisfy ISO 9001:2015 requirements for revision-controlled deliverables.

Final Documentation Review and Design Validation Prior to Shipment

Cross-Checking Design Specifications with Approved Engineering Drawings

When engineers check finished panels against their original CAD drawings or blueprints, they're really looking for any size differences and making sure all components are where they should be. This quality control step helps spot problems such as wires going the wrong direction or circuit breakers placed too close together, which might lead to trouble during installation or even create safety risks down the line. According to research from the Manufacturing Quality Consortium back in 2023, about one out of every eight delays in getting industrial equipment running properly was traced back to design changes that weren't properly documented somewhere along the process.

Verifying Completeness of BOMs, Schematics, and User Manuals

Final documentation undergoes a three-part verification:

1. Bill of Materials (BOM) matched to installed hardware
2. Electrical schematics reflecting actual wiring
3. Multilingual user manuals detailing troubleshooting steps and safety interlocks
   Industrial maintenance surveys show that incomplete or inconsistent documentation contributes to 23% of post-shipment support requests.

Ensuring Traceability and Quality Records Are Properly Documented

All test certificates, material certifications, and inspection checklists are logged in serialized, ISO 9001-compliant tracking systems. This creates an auditable chain from raw materials to final assembly—essential for warranty resolution and regulatory audits.

FAQs

What is the purpose of pre-shipment inspection for control panels?

Pre-shipment inspection ensures that industrial control panels are free from hidden issues and comply with industry standards before deployment. This process helps identify and rectify any potential quality issues.

What are the three core objectives of pre-shipment inspections?

The three core objectives are: Ensuring specification compliance, validating functional readiness, and confirming documentation accuracy.

How does pre-shipment inspection help prevent field failures?

Inspection ensures systems meet safety standards and functional requirements, reducing the risk of costly post-installation problems and recalls.

What is involved in the functional performance and safety testing of control panels?

This involves testing operational aspects like relays and contactors, validating system responsiveness, and ensuring electrical and mechanical safety per OSHA and ISO standards.

Why is compliance verification important in control panels inspection?

Compliance verification ensures that control panels meet international and industry-specific standards, reducing the risk of installation delays and enhancing customer confidence.
